PEDROLLO - Elettropompa Sommergibile Automatica TOP MULTI-TECH 4 48TPMA270A1U | 1HP | 80 L/min | 52m | Start&Stop
PEDROLLO - Elettropompa Sommergibile Automatica TOP MULTI-TECH 4 48TPMA270A1U | 1HP | 80 L/min | 52m | Start&Stop is backordered and will ship as soon as it is back in stock.
Description
Description

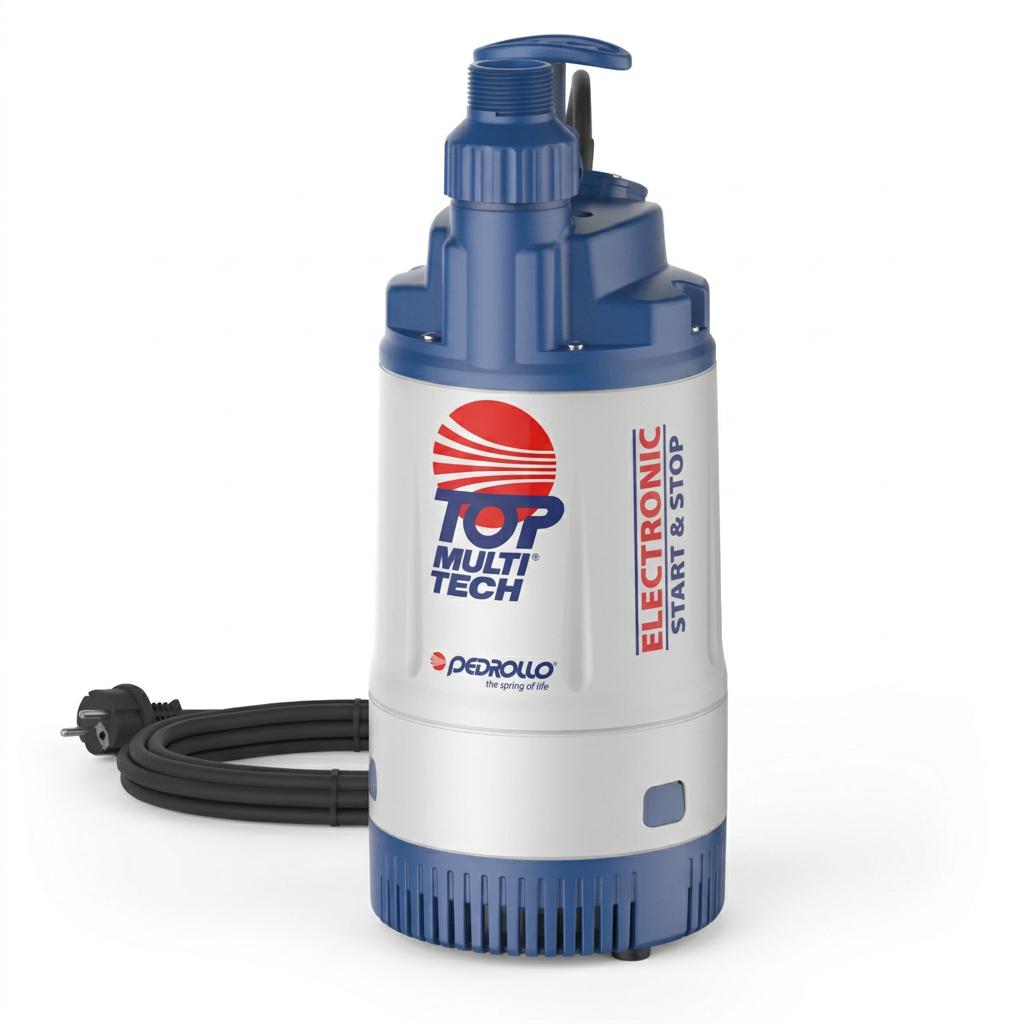

PEDROLLO - Elettropompa Sommergibile Automatica TOP MULTI-TECH 4 48TPMA270A1U | 1HP | 80 L/min | 52m
La PEDROLLO TOP MULTI-TECH 4 è un'elettropompa sommergibile multigirante automatica con dispositivo elettronico integrato per l'avvio e l'arresto automatico (Start&Stop): la pompa si avvia quando la pressione dell'impianto scende sotto i 2,5 bar, ad esempio all'apertura di un rubinetto, e si arresta quando il flusso scende sotto i 3 litri al minuto. Progettata per pompare acqua pulita e liquidi chimicamente non aggressivi, è ideale per l'approvvigionamento idrico domestico da vasche, serbatoi o pozzi relativamente profondi, per il prelievo di acqua piovana da cisterne e per alimentare impianti di irrigazione.
- Potenza: 0,75 kW (1 HP), monofase 220-240V 50Hz
- Portata: fino a 80 l/min
- Prevalenza: fino a 52 m
- Pressione di ripartenza: 2,5 bar
- Start&Stop elettronico integrato: avvio e arresto automatici, protezione a secco
- Codice prodotto: 48TPMA270A1U
Caratteristiche principali
- Start&Stop elettronico integrato: nessun pressostato esterno necessario; il dispositivo gestisce autonomamente avvio, arresto e protezioni.
- Protezione a secco: blocca la pompa in assenza di acqua per evitare danni al motore.
- Anti-blocco ogni 48 ore: dopo lunghi periodi di inattività la pompa si avvia automaticamente per 10 secondi.
- Pompa multigirante sommergibile: elevate prevalenze con portate costanti, ideale per pozzi e serbatoi profondi fino a 5 m sotto il livello dell'acqua.
- Costruzione di qualità: corpo pompa in tecnopolimero, giranti e diffusori in Noryl™, albero in acciaio inox AISI 431, camicia motore in AISI 304, doppia tenuta meccanica con camera d'olio interposta.
- Dotazione completa: cavo di alimentazione H07 RN-F da 10 m con spina Schuko, raccordo filettato 1¼" e raccordo portagomma Ø 35 mm.
Dati tecnici
| Brand | PEDROLLO |
| Modello | TOP MULTI-TECH 4 |
| Codice prodotto / SKU | 48TPMA270A1U |
| Tipo | Elettropompa sommergibile multigirante automatica |
| Potenza P2 | 0,75 kW (1 HP) |
| Potenza assorbita P1 | 0,85 kW |
| Alimentazione | 220-240V monofase, 50 Hz, 3,9 A, 2900 rpm |
| Condensatore | 14 µF, 450V |
| Portata | 10-80 l/min |
| Prevalenza | 8-50 m (massima 52 m) |
| Pressione di ripartenza | 2,5 bar |
| Bocca | 1¼" gas |
| Temperatura del liquido | 0°C ~ +40°C |
| Profondità d'impiego | Fino a 5 m sotto il livello dell'acqua |
| Livello di svuotamento | 35 mm dal fondo |
| Motore | Monofase 230V 50Hz con salvamotore termico incorporato, servizio continuo S1, isolamento classe F, protezione IP X8 |
| Materiali | Corpo pompa tecnopolimero; giranti e diffusori Noryl™; albero AISI 431; camicia motore AISI 304 |
| Tenuta | Doppia tenuta meccanica con camera d'olio interposta |
| Dimensioni | 178 x 415 mm (axh) |
| Peso | 10 kg |
| Certificazioni | EN 60335-1 / IEC 60335-1; EN 60034-1 / IEC 60034-1 |
| Codice HS | 841370 |
| Paese di origine | IT (Italia) |
Applicazioni
- Approvvigionamento idrico domestico: prelievo da vasche, serbatoi interrati o pozzi relativamente profondi.
- Raccolta acqua piovana: prelievo da cisterne per innaffiare a mano o alimentare un impianto di irrigazione.
- Pressurizzazione automatica: alimentazione di impianti idrici con pressione costante, senza pressostato esterno.
- Irrigazione giardino: alimentazione di impianti a goccia, a pioggia o a manichetta.
Documentazione ufficiale

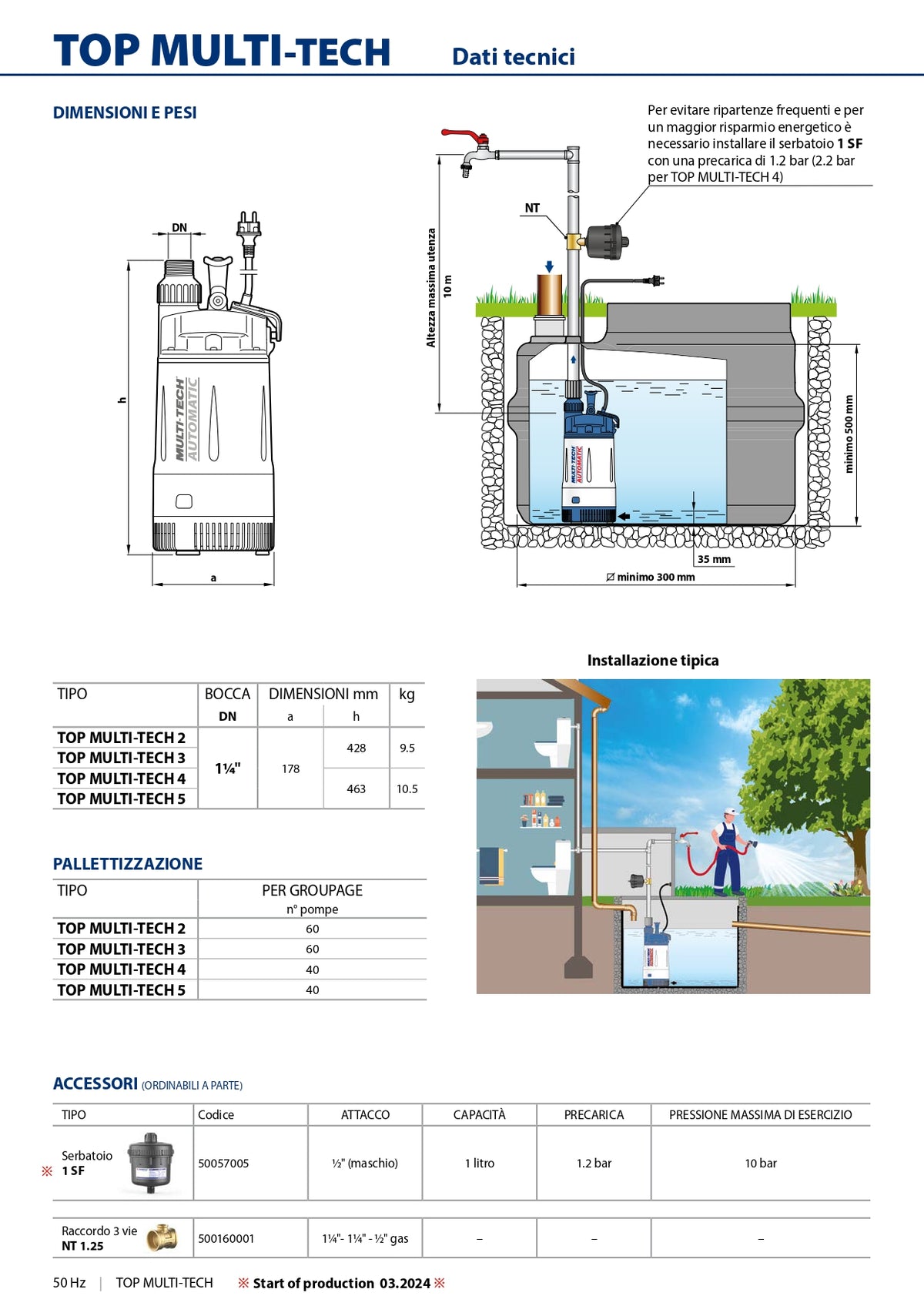

Scheda tecnica: scarica la scheda tecnica TOP MULTI-TECH in PDF.
Pagina ufficiale del prodotto: TOP MULTI-TECH su pedrollo.com.
Istruzioni per l'installazione ed uso: scarica il manuale in PDF.
Istruzioni per l'uso: scarica il manuale in PDF.
Domande Frequenti (FAQ)
Q: È necessario un serbatoio a pressione?
A: Sì, per il corretto funzionamento è necessario un serbatoio a membrana (come il Pedrollo 1 SF da 1 litro) con precarica di 2,2 bar. Non è incluso nella confezione.
Q: La pompa si protegge dal funzionamento a secco?
A: Sì, il dispositivo elettronico integrato blocca automaticamente la pompa in assenza di acqua, proteggendo il motore da danni.
Q: Come funziona l'avvio e l'arresto automatico?
A: La pompa si avvia quando la pressione dell'impianto scende sotto i 2,5 bar e si arresta quando il flusso scende sotto i 3 litri al minuto, ad esempio alla chiusura del rubinetto.
Q: Quali liquidi può pompare?
A: È consigliata per acqua pulita e liquidi chimicamente non aggressivi per i materiali costituenti la pompa, con temperatura fino a +40°C.
PEDROLLO - Elettropompa Sommergibile Automatica TOP MULTI-TECH 4 48TPMA270A1U | 1HP | 80 L/min | 52m | Start&Stop
PEDROLLO: tecnologia italiana per il pompaggio dell'acqua, affidabile e duratura.
