MAXIFLAME - Boiler / Heating Appliance Interface Module MX115/1 Mini 115011 | 25/30 kW | Hydraulic Separation | Box Included

MAXIFLAME  |  SKU: 115011
€399,00 €500,00 IVA INCLUSA
Prezzo più basso ultimi 30gg: €399,00

Description

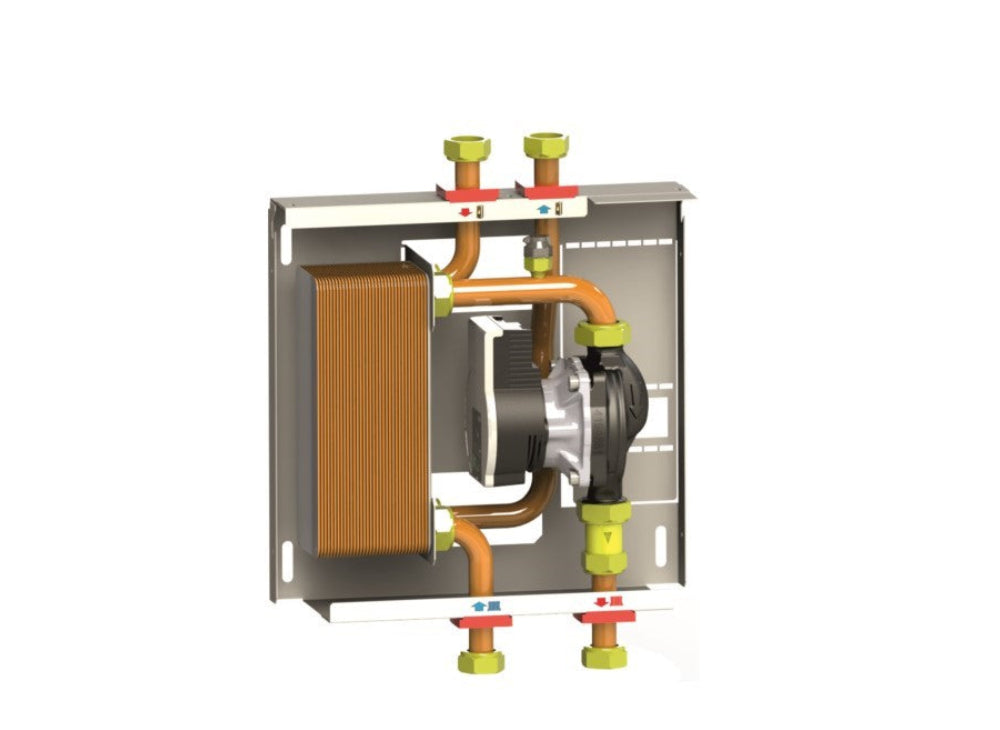

MAXIFLAME MX115/1 Mini 115011 — Boiler / Thermal Product Interface Module 25/30 kW | Hydraulic Separation | Cover Box Included

The MAXIFLAME MX115/1 Mini module (code 115011) is the super-compact solution for the integrated management of two heat generators in a single residential unit: a solid fuel boiler (open or closed system) and a gas boiler. Using an AISI 316L steel plate heat exchanger, the module hydraulically separates the two circuits, preventing the summation of the power of the two generators as required by INAIL (formerly ISPESL) regulations. The system automatically manages the switching between the two generators based on heat availability, optimizing energy efficiency and reducing consumption. Cover box included.

Quick specifications:
  • Model: MX115/1 Mini
  • Code: 115011
  • EAN: 8057960490961
  • Power: 25/30 kW
  • Connections: G 3/4"
  • Circulators: Wilo PARA 15/6 SC
  • Heat exchanger: AISI 316L steel plate
  • Max operating pressure: 3 bar
  • Compliance: INAIL (formerly ISPESL) regulations
  • Cover box: Included
  • Made in Italy: Yes

Operation

The MX115/1 Mini module automatically manages the switching between two generators installed in the same residential unit:

  • Heat demand from the system — the main generator (traditional gas boiler) activates.
  • Thermal product ignition — when the second generator (solid fuel boiler) reaches the reference temperature, the circulator of its circuit activates, heating the module's heat exchanger.
  • Automatic switching — once the primary circuit of the thermal product reaches the appropriate temperature, the module's circulator activates, providing heat to the system, and the first generator automatically turns off.
  • Hydraulic separation — the plate heat exchanger keeps the two circuits hydraulically separated, preventing the summation of power and ensuring the correct operation of each generator's safety systems.

Main features

  • INAIL (formerly ISPESL) compliant hydraulic separation — the plate heat exchanger hydraulically separates the circuits of the two generators, preventing the summation of power as required by Italian regulations for thermal plants with multiple generators.
  • AISI 316L steel plate heat exchanger — high-quality stainless material, resistant to corrosion and high temperatures; ensures efficient heat transfer between the two hydraulic circuits.
  • Wilo PARA 15/6 SC circulators — high-quality circulators from the Wilo brand, a world leader in pump technology; they ensure reliability and long-lasting durability.
  • Automatic switching between generators — the system independently manages the priority between the gas boiler and the thermal product, maximizing the use of heat produced by solid combustion and reducing gas consumption.
  • Super-compact format — reduced dimensions for installation in limited spaces; ideal for homes where technical space is limited.
  • Cover box included — the cover box is supplied as standard, ensuring a neat and professional presentation of the installation and protecting the internal components.
  • Optional control unit — possibility of adding a control unit for advanced and programmable management of the two generators.

Technical data

Model MX115/1 Mini
Code 115011
EAN 8057960490961
Power 25/30 kW
Connections G 3/4"
Circulators Wilo PARA 15/6 SC
Heat exchanger AISI 316L steel plate
Max operating pressure 3 bar
Air vent valve Yes (included)
Non-return valve Yes (included)
Wall mounting kit Yes (included)
Cover box Included
Control unit Optional
Compliance INAIL (formerly ISPESL)
HS code 8419.08.90
Country of origin Italy

Ideal applications

  • Homes with a wood/pellet boiler + gas boiler — ideal solution for those who want to integrate a solid fuel thermal product with the existing gas boiler, making the most of biomass heat and reducing gas consumption.
  • Systems with a wood stove or wood insert with heat exchanger — the module manages the integration between the stove/insert and the gas boiler, ensuring INAIL regulatory compliance.
  • Renovations and new installations — the super-compact format and included wall mounting kit facilitate installation even in limited technical spaces.
  • Systems requiring INAIL compliance — hydraulic separation via plate heat exchanger ensures compliance with Italian regulations for thermal plants with multiple generators, avoiding costly retrofitting work.

Installation notes: Installation must be carried out by a qualified and authorized technician. Check the compatibility of the module's power (25/30 kW) with the installed generators. The maximum operating pressure is 3 bar. The control unit is optional and must be ordered separately. Consult the MAXIFLAME technical manual for the hydraulic and electrical connection diagram.

Frequently Asked Questions (FAQ)

Q: Why is hydraulic separation between the two generators necessary?
A: INAIL (formerly ISPESL) regulations require that in a single residential unit with multiple heat generators, the power ratings are not summed. Hydraulic separation via a plate heat exchanger ensures that each generator operates independently with its own safety systems, avoiding the need to install expensive additional safety systems for the thermal plant.

Q: What is the difference between MX115/1 Mini and the higher-power models?
A: The MX115/1 Mini model (code 115011) is sized for power ratings up to 25/30 kW, suitable for most residential homes. For higher power ratings (35/40 kW), other models in the MX115 range are available. Check the power of your generators before purchasing.

Q: Is the control unit included?
A: No, the control unit is optional and must be ordered separately. The MX115/1 Mini module also works without a control unit, but adding one allows for more advanced and programmable management of the two generators.

Q: What is included in the supply?
A: The MX115/1 Mini module includes: Wilo PARA 15/6 SC circulators, AISI 316L plate heat exchanger, air vent valve, non-return valve, wall mounting kit, and cover box. The control unit is optional.


MAXIFLAME - Boiler / Thermal Product Interface Module MX115/1 Mini 115011 | 25/30 kW | Hydraulic Separation | Box Included

MAXIFLAME: Italian thermal systems for the integration of solid fuel and gas generators.

Security Information

Data about the Person Responsible for the Product: MAXIFLAME by Tecno Sales Agency srl - Via Linguetta 10/C, 60027 Osimo (AN)

Contact Person Responsible for the Product: Tel: +39 0717223426 - Fax: Fax:+39 0712115769 - email: info@maxiflame.it

Product Safety Document:

Warranty

.



At BricoHome, we are committed to offering you high-quality products, aware that your peace of mind goes beyond a simple transaction. To ensure your complete satisfaction, we have implemented a robust warranty policy, demonstrating our commitment to quality and reliability.

In this section you will find information about our product warranty. We want you to be well-informed and confident in your choice, so we invite you to carefully read the warranty information. Our goal is to ensure you have a worry-free shopping experience, with the certainty that, if necessary, we are here to support you at all times.

Please contact us for any warranty request:


Please specify: first and last name, order ID, brand, product, and issue. We will look for the fastest solution for you and contact the brands as necessary.

Read the information document regarding the minimum two-year legal warranty provided in the European Union.


PRODUCT WARRANTY (STANDARD)
The warranty period is 12 months from the product purchase date for consumers who have an invoice. It is 24 months for those who have a receipt or other proof of purchase.


PRODUCT WARRANTY WITH SEAL
For sealed products (e.g., insecticide), the warranty does not apply once opened. However, if the seal remains intact, you are entitled to a free return within 30 days.

Shipments

Shipping Details

Brico Home Ferramente ships exclusively via express courier. Orders are processed and shipped within 24 hours of placing an order on the website if placed on weekdays.

Shipments are made via the following couriers

When ordering, you can enter your shipping preferences in the notes section, choosing the desired courier.

Shipping Costs:

- Italy area (except Sardinia)

  • Standard shipping (€6.90), FREE for orders over €99
  • Priority shipping (€9.90), reduced cost to (€3.90) for orders over €99


- Italy area (Sardinia only)

  • Standard shipping (€10.90), FREE for orders over €99


- Eurozone 1 (Austria, Belgium, Croatia, Czechia, Denmark, France, Hungary, Luxembourg, Netherlands, Poland, Slovenia, Spain, Germany)

  • Standard shipping (€19.99)


- Eurozone 2 (Romania)

  • Standard shipping (€24.95)

Shipping times:

  • 24/48 WORKING HOURS FOR NORTHERN AND CENTRAL ITALY;
  • 48/72 HOURS FOR SARDINIA AND MINOR ISLANDS;
  • 24 WORKING HOURS FOR SOUTHERN ITALY INCLUDING SICILY;

Returns are always guaranteed and FREE, within 30 days of purchase.



Free returns

In any case, the consumer buyer has the right to withdraw from the contract without penalty and without specifying the reason within 30 days of receiving the purchased goods . If the withdrawal occurs within this period, we will arrange for the collection of the goods by courier at our expense , without the customer having to take any action. The customer must provide us with a date and time slot of at least 3-4 business hours , so we can schedule the collection at a convenient time.

- Refunds (if applicable)

Once we receive your return, we will carry out all necessary checks, verifying various aspects: such as the presence of the original box, the presence of any accessories or parts included, any damage not present in the original new product, etc. If your request is approved, the refund will be processed and a credit will automatically be applied to your card or original payment method. within 5 working days.

- Changes (if applicable)
We only replace items if they are defective or damaged.

In the event that the Consumer decides to exercise the right of withdrawal within the timeframes indicated above, you must notify the seller of this By email to info@bricohomeferramenta.it, or by completing the easy return form by clicking here.

If your return request exceeds 30 days, please provide as many details as possible so we can better assess the situation. Please note that in this case, the customer will be responsible for the return shipping costs.

Tax Deductions

A guide to purchasing with tax deductions and reduced VAT on Bricohome
If you're purchasing products for renovations, home improvements, or for specific needs, you may be eligible for significant tax breaks. Find out how to access these benefits and make your purchases even more affordable.


Who is entitled to it?
Tax breaks and reduced VAT are reserved for:
- Private citizens carrying out building renovation or energy efficiency improvement work;
- Condominiums for work on common areas;
- Companies and professionals who carry out specific interventions;

Which products are eligible for the discounts?
Not all products are eligible for tax relief. Generally , tax relief applies to materials and devices used for renovation, energy efficiency, and architectural barrier removal projects. To check the suitability of a specific product , we recommend that you consult the current legislation or contact our customer service.

On Bricohome, the most popular product categories eligible for the discounts include: Electric pumps, Pressure controls, Taps, Thermostats, Control units, Circulators, Intercoms and video intercoms.

Reduced VAT rates
Depending on the type of intervention, different VAT rates apply:
- 4% for the construction or purchase of a first home (if eligible).
- 10% for extraordinary maintenance, restoration, or renovation work.
- 22% for all products not subject to tax relief.


How to apply for the discount on Bricohome

To obtain the reduced VAT, it is necessary to:

  1. Place your order on Bricohome by selecting bank transfer as your payment method.

  2. Send a request to ......... with the subject line: "Tax deduction request for order ..." (the order number will arrive a few seconds after confirming the order on the website). Specify and provide the following information:

    - Name

    - Surname

    - Address

    - Telephone

    - Tax ID code

    - Type of deduction

    - Reference protocol number

    - Attach a copy of your identity document

    - Attach documents certifying your eligibility to meet the requirements.

  3. Please wait for your request to be processed. We will issue an invoice and send you bank transfer instructions within 48 business hours.

  4. Make the transfer following the instructions received.

  5. Once payment is received, we will proceed with the shipment of the goods.

Doubts or questions?
Write to us at info@bricohomeferramenta.it
Call us at +39 376 0343302

Do you need help?
Call us on 376 0343302

Secure payments

  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • MobilePay
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • HeyLight
  • Scalapay

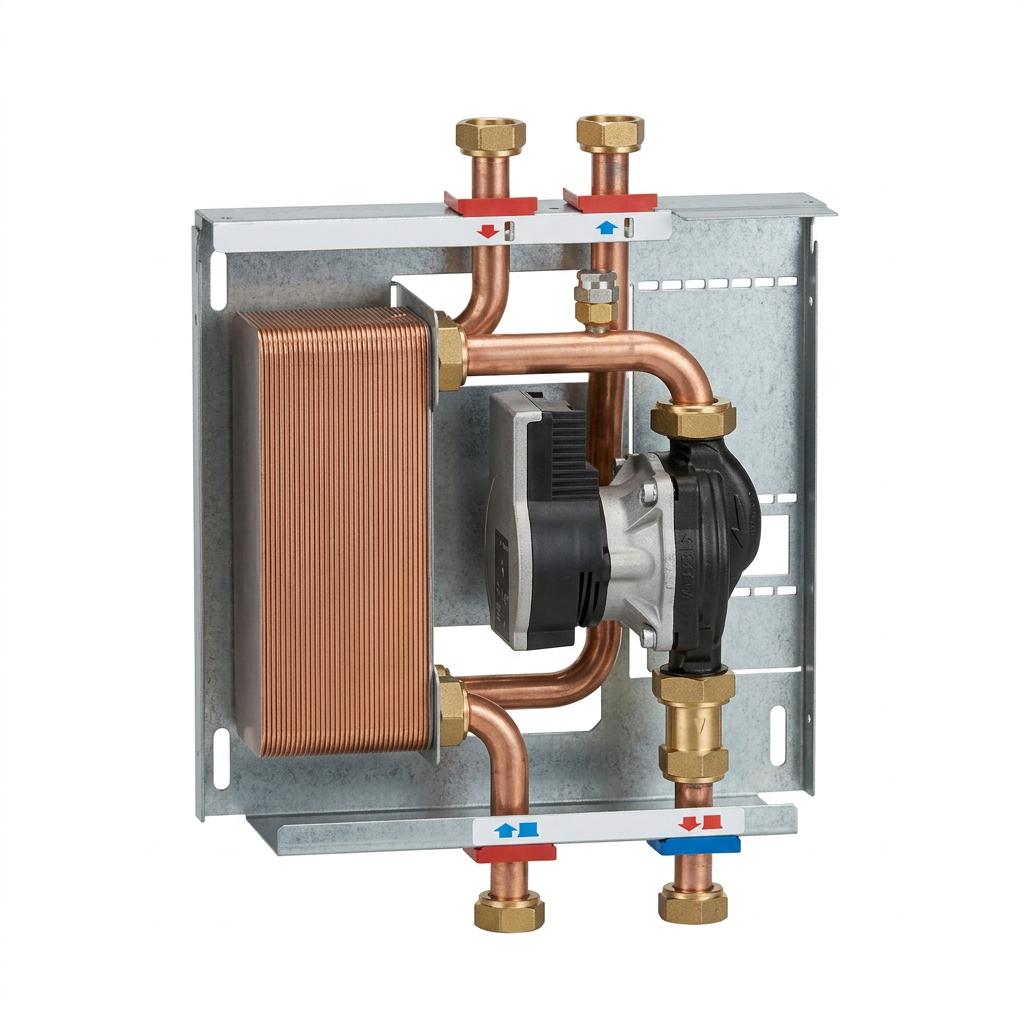

Copertina gruppo con scambiatore a piastre e circolatore
