C.R. - Galleggiante Nanotek Attacco Laterale 1513IT | 3/8'' Ottone | <20dB | CE UNI EN 14124 | Universale
C.R. - Galleggiante Nanotek Attacco Laterale 1513IT | 3/8'' Ottone | <20dB | CE UNI EN 14124 | Universale is backordered and will ship as soon as it is back in stock.
Description
Description

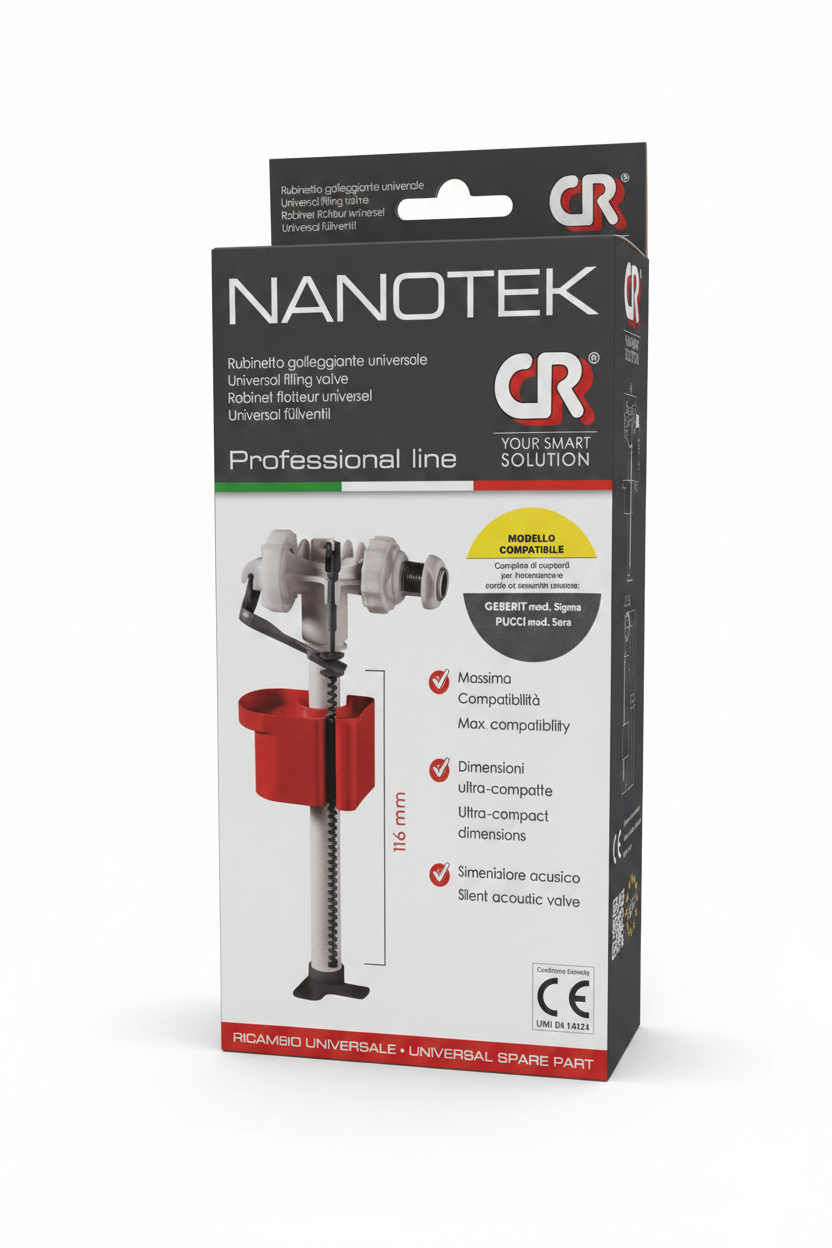

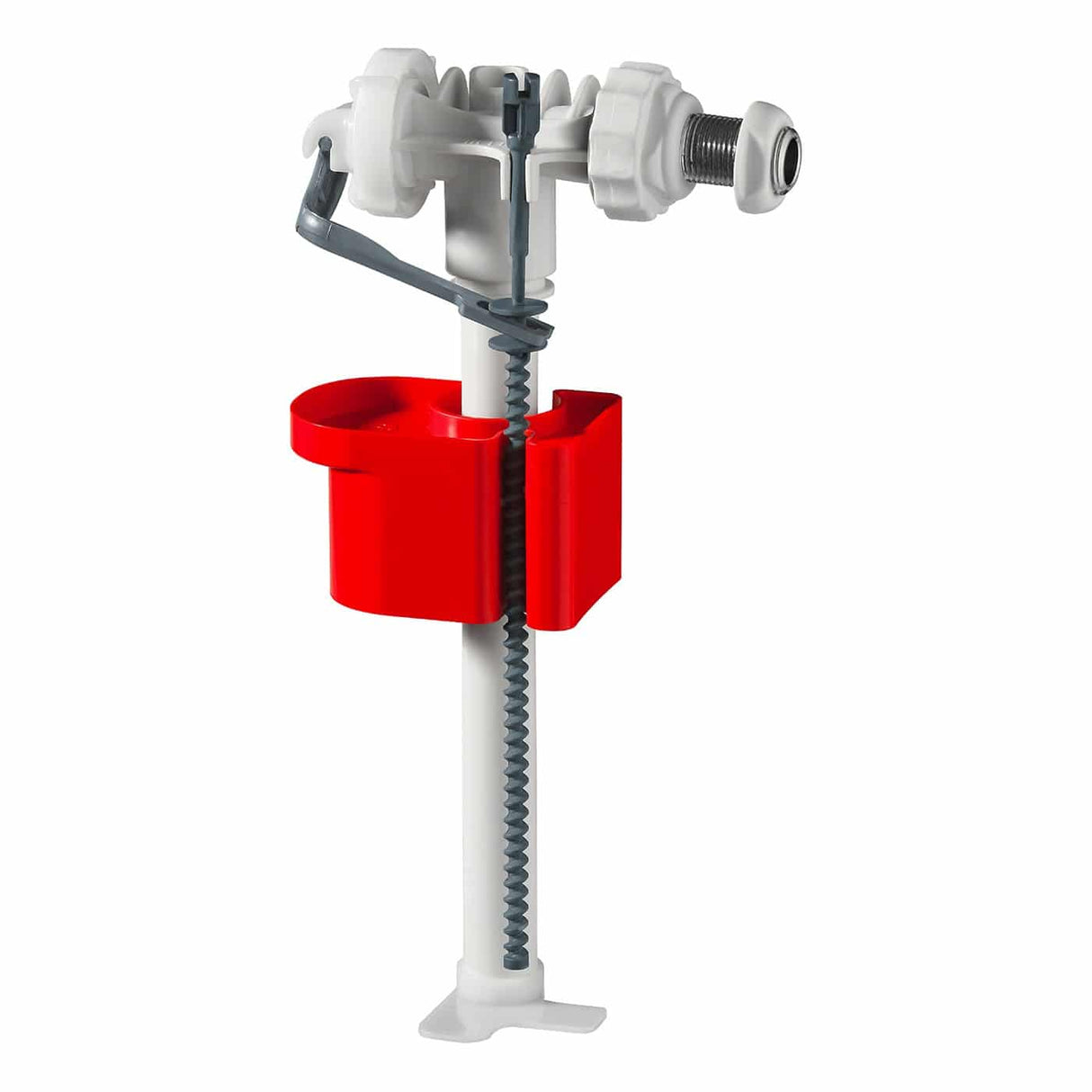

C.R. Nanotek 1513IT — Galleggiante Universale Attacco Laterale | 3/8'' Ottone | <20 dB | CE UNI EN 14124
Il C.R. Nanotek 1513IT è la valvola di riempimento progettata per gli installatori professionisti che necessitano di una soluzione universale, compatibile con la maggior parte delle cassette di scarico esterne e ad incasso presenti sul mercato. Le dimensioni ultra-compatte, il funzionamento a contropressione e la classe acustica 1 (<20 dB) lo rendono la scelta ideale per installazioni silenziose e affidabili. Completo di adattatori per cassette ad incasso Geberit mod. Sigma e Pucci mod. Sara.
- Art.: 1513IT
- Tipo attacco: Laterale
- Codolo: 3/8'' ottone
- Funzionamento: A contropressione
- Rumorosità: Classe 1 — <20 dB
- Regolazione altezza acqua: 116 mm
- Certificazione: CE UNI EN 14124 (test UNI EN 3822-1)
- Compatibilità: Cassette esterne e ad incasso universali
- Adattatori inclusi: Geberit Sigma, Pucci Sara
Caratteristiche principali
- Universale e ultra-compatto — Dimensioni ridotte che permettono l’installazione su tutte le tipologie di cassette di scarico esterne e ad incasso
- Funzionamento a contropressione — Tecnologia avanzata per un riempimento preciso, silenzioso e affidabile
- Classe acustica 1 <20 dB — Massima silenziosità certificata, ideale per ambienti residenziali e alberghieri
- Silenziatore acustico integrato — Riduce ulteriormente l’impatto sonoro durante il riempimento
- Regolazione altezza acqua 116 mm — Ampia escursione di regolazione per adattarsi a diversi volumi di cassetta
- Doppia valvola interna di sicurezza — Protezione contro il traboccamento e la perdita d’acqua
- Valvola di non ritorno — Impedisce il riflusso dell’acqua nella rete idrica
- Filtro anti-impurità ispezionabile — Filtro pulibile e accessibile senza smontare la valvola, per una manutenzione rapida
- Codolo 3/8'' in ottone — Materiale resistente alla corrosione per una lunga durata nel tempo
- Adattatori inclusi — Compatibile con cassette ad incasso Geberit mod. Sigma e Pucci mod. Sara grazie agli adattatori in dotazione
- Certificazione CE UNI EN 14124 — Conforme allo standard europeo per valvole di riempimento, testato secondo UNI EN 3822-1
Dati tecnici
| SKU / Art. | 1513IT |
| EAN | 8029954073467 |
| Brand | C.R. |
| Modello | Nanotek — Attacco laterale |
| Tipo attacco | Laterale |
| Codolo | 3/8'' ottone |
| Funzionamento | A contropressione |
| Classe acustica | Classe 1 — <20 dB |
| Regolazione altezza acqua | 116 mm |
| Valvola di non ritorno | Sì |
| Doppia valvola sicurezza | Sì |
| Filtro anti-impurità | Sì — ispezionabile e pulibile |
| Silenziatore acustico | Sì |
| Certificazione | CE UNI EN 14124 — test UNI EN 3822-1 |
| Adattatori inclusi | Geberit mod. Sigma, Pucci mod. Sara |
| Compatibilità | Cassette esterne e ad incasso universali |
| Paese di origine | Italia (IT) |
Applicazioni
- Sostituzione galleggiante cassetta esterna — Ricambio universale per la maggior parte delle cassette WC esterne a zaino presenti sul mercato
- Cassette ad incasso — Compatibile con cassette Geberit mod. Sigma e Pucci mod. Sara grazie agli adattatori inclusi
- Installazioni professionali — Progettato per idraulici e installatori che necessitano di un ricambio affidabile e universale
- Ambienti silenziosi — Classe acustica 1 <20 dB ideale per hotel, appartamenti e ambienti dove il rumore è critico
Documentazione ufficiale
Scarica la scheda tecnica C.R. Nanotek 1513IT (PDF)
Scarica le istruzioni di montaggio C.R. Nanotek 1513IT (PDF)
Domande Frequenti (FAQ)
Q: Il Nanotek 1513IT è compatibile con la mia cassetta WC?
A: Il Nanotek 1513IT è progettato per essere universale e compatibile con la maggior parte delle cassette esterne e ad incasso. Include adattatori specifici per Geberit mod. Sigma e Pucci mod. Sara. Per altri modelli verificare le dimensioni di installazione nella scheda tecnica.
Q: Cosa significa funzionamento a contropressione?
A: Il sistema a contropressione utilizza la pressione dell’acqua stessa per chiudere la valvola, garantendo una tenuta precisa e silenziosa senza parti meccaniche soggette a usura rapida.
Q: Come si pulisce il filtro anti-impurità?
A: Il filtro è ispezionabile e pulibile senza smontare completamente la valvola. È sufficiente accedere al componente, estrarlo e sciacquarlo sotto acqua corrente. Consultare le istruzioni di montaggio per i dettagli.
Q: Qual è la differenza tra attacco laterale e attacco dal basso?
A: L’attacco laterale (1513IT) prevede il collegamento idrico sul lato della cassetta, mentre l’attacco dal basso prevede il collegamento nella parte inferiore. La scelta dipende dalla posizione del rubinetto di arresto nell’impianto esistente.
