INGCO - Gravity Spray Gun ASG4041 | 400cc Stainless Steel Tank | 1.5mm Nozzle | 3-4 BAR | Spray 180-250mm
INGCO - Gravity Spray Gun ASG4041 | 400cc Stainless Steel Tank | 1.5mm Nozzle | 3-4 BAR | Spray 180-250mm is backordered and will ship as soon as it is back in stock.
Description
Description

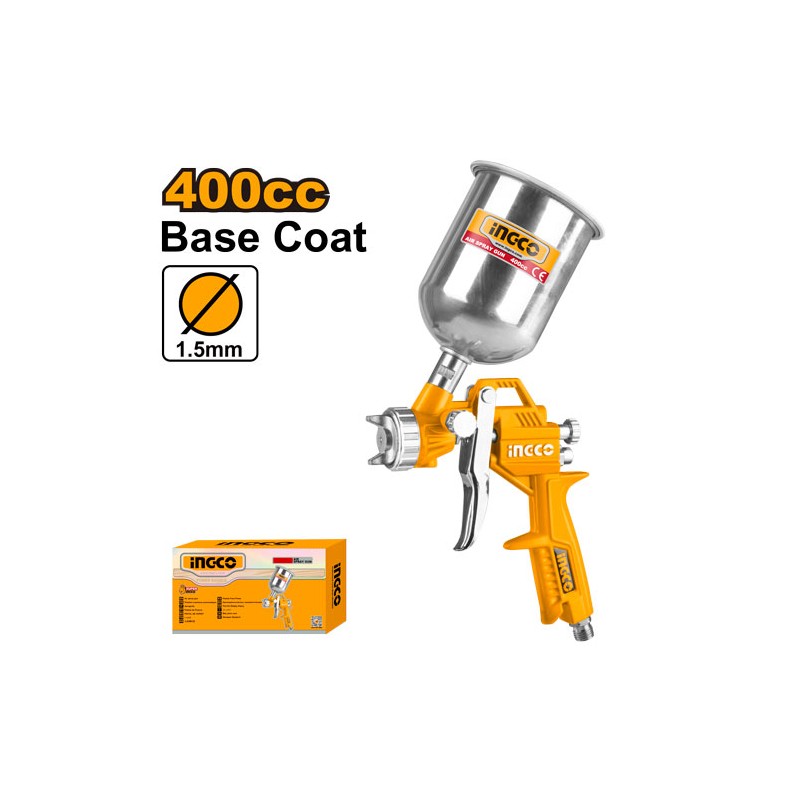

INGCO ASG4041 - Gravity-Fed Spray Gun with 400cc Stainless Steel Top Tank - Standard 1.5mm Nozzle (Optional 1.2-1.8mm) - Pressure 3-4 BAR - Spray Width 180-250mm
The INGCO ASG4041 Spray Gun is a professional spray gun with gravity-fed supply and a 400cc stainless steel top tank. The standard 1.5mm nozzle (replaceable with optional 1.2 to 1.8mm nozzles) guarantees an adjustable spray width from 180 to 250mm to adapt to every type of work. Ideal for painting, bodywork, DIY, and finishing flat and curved surfaces. Recommended working pressure 3.0-4.0 BAR, maximum pressure 8.3 BAR.
Main Features
- Gravity-Fed Supply - Top tank for a constant and uniform paint flow
- 400cc Stainless Steel Tank - Large, corrosion-resistant, and easy to clean
- Standard 1.5mm Nozzle - Versatile for medium-viscosity paints
- Optional 1.2 and 1.8mm Nozzles - For thinner or thicker paints
- Spray Width 180-250mm - Adjustable for large surfaces or details
- Recommended Pressure 3.0-4.0 BAR - Compatible with most compressors
- Maximum Pressure 8.3 BAR (120 PSI) - Wide safety margin
- 1/4" Air Inlet - Universal standard fitting
- Weight 0.5 kg - Lightweight and easy to handle for extended work sessions
Technical Data
| Model | ASG4041 |
| Brand | INGCO |
| SKU | ASG4041 |
| EAN | 6928073603246 |
| Supply type | Gravity (top tank) |
| Air inlet | 1/4" |
| Standard nozzle | 1.5 mm |
| Optional nozzles | 1.2 mm / 1.8 mm |
| Recommended pressure | 3.0 - 4.0 BAR (43.5 - 58 PSI) |
| Maximum pressure | 8.3 BAR (120 PSI) |
| Tank capacity | 400 cc |
| Average air consumption | 119 - 200 l/min (4.2 - 7.1 CFM) |
| Spray width | 180 - 250 mm |
| Sound pressure level | 75.4 dB(A) |
| Sound power level | 88.4 dB(A) |
| Weight | 0.5 kg |
| Country of origin | China |
Applications
- Bodywork Painting - Professional finish on cars, motorcycles, and vehicles
- Wood and Furniture Painting - Uniform finish on flat and curved surfaces
- DIY and Home Improvement - Ideal for home painting projects
- Primers and Undercoats - Optional 1.8mm nozzle for thicker products
- Varnishes and Fluid Paints - Optional 1.2mm nozzle for maximum precision
- Metal and Plastic Surfaces - Even finish without brush strokes
Why Choose the INGCO ASG4041
Gravity-Fed Supply - Constant and uniform flow, less paint waste compared to suction
400cc Stainless Steel Tank - Large, durable, and easy to clean after use
Interchangeable Nozzles - 1.2 / 1.5 / 1.8mm to adapt to any type of paint
Standard 1/4" Fitting - Compatible with any compressor on the market
Only 0.5 kg - Lightweight for extended work sessions without fatigue
INGCO - Professional tools with the best quality/price ratio
Documentation and Video
ASG4041 User and Maintenance Manual - Complete guide to use and cleaning
Demonstration Video - INGCO ASG4041 Spray Gun with Top Tank - Watch the product in action on YouTube
Frequently Asked Questions (FAQ)
Q: What compressor is needed to use this spray gun?
A: A compressor with a 1/4" fitting and a minimum flow rate of 119-200 l/min (4.2-7.1 CFM) at a pressure of 3.0-4.0 BAR is required. Most 24-50 liter compressors are compatible.
Q: Can I change the nozzle for thicker paints?
A: Yes, optional 1.2mm (fluid paints and varnishes) and 1.8mm (primers and thick paints) nozzles are available. The standard nozzle included is 1.5mm.
Q: What is the difference between gravity-fed and suction supply?
A: Gravity-fed supply (top tank) guarantees a more constant and uniform flow, less paint waste, and better pattern control. Suction (bottom tank) is more suitable for large quantities of paint.
Q: How do you clean the stainless steel tank?
A: Empty the tank, add a solvent appropriate for the paint used, and spray until completely clean. The stainless steel tank resists common solvents and does not corrode.
Q: Is it suitable for car bodywork painting?
A: Yes, with the 1.5mm nozzle and a pressure of 3-4 BAR, it is suitable for enamels and bodywork paints. For metallic base coats, the 1.2mm nozzle is recommended.
INGCO ASG4041 - Gravity-Fed Spray Gun - 400cc Stainless Steel Tank - 1.5mm Nozzle - 3-4 BAR Pressure - 180-250mm Spray
